45 DEGREE ELBOW ANSI B 16.9

With quality and client satisfaction as our forte, we manufacture a vast range of premium quality 45 degree elbow pipe fittings. Fabricated in tandem to international quality standards, these pipe fittings are immensely used in chemical, fertilizer, oil & gas, paper, cement and other industries. These corrosion & abrasion proof elbows last for long span of time. Further, they can be custom engineered to perfectly meet the clients' specifications.

Pipe elbow fittings is a very important pipe fitting. When we talk about a pipe elbow, it means a length of pipe with a sharp bend in it. Pipe elbows are fitting accessories which are used widely in various industrial sectors in pipe fitting. A pipe elbow is frequently used in pressurized applications and is available in various shapes and sizes for use in different applications. A pipe elbow is a fitting installed between two lengths of pipe or tube allowing a change of direction, usually in the 90⁰ or 45⁰ direction.

TOSHWIN TUBES INDIA manufactures pipe fitting devices which are bent in such a way to produce some degree (90, 45, 180 degree) changes in the direction of flow of the content in the pipe. Elbows are manufactured to meet different specifications, in terms of size and diameter. TOSHWIN TUBES INDIA manufactures & supplies high quality elbows that can be used for various applications. Our elbows are tested and verified for durability, accuracy and precision.

TOSHWIN TUBES INDIA manufactures forged, seamless & welded elbows (pipe fitting) of types 90⁰ Elbows, 90⁰ Elbow, 45⁰ Elbows, 180⁰ Elbow of socket weld, threaded type to ANSI B 16.9 from classes 2000 to 9000 and Schedules from 10 to 160 .

TOSHWIN TUBES INDIA manufactures elbow (pipefitting) accordance with BS standard from classes 2000 to 9000 lbs, Schedule 10 to 160.

TOSHWIN TUBES INDIA designs & manufactures elbows (pipe fittings) of special type made according to drawing on request.

Material: A234-WPB A234-WP12 A234-WP11 A234-WP5 A403-WP304 A403-WP304L A403-WP316. A403-WP316L A420-WPL6. Ceramic Lined.

Size:
Outer Diameter (D): D<=1220mm
Wall Thickness (T): T<=120mm
L/R Elbow( 90deg & 45deg & 180deg.),
S/R Elbow (90deg & 180deg.)

Pressure: SCH5 to SCH160

Manufacturing standard: ANSI, JIS, DIN, EN, API 5L, etc.

Bending Angle: Degree 15, 30, 45, 60, 90, 135, 180 and also could manufacture according the angles given by the clients.

End Bevel: According to the bevel of welding pipe fittings construction

Surface treatment: Shot blasted, rust-proof black oil

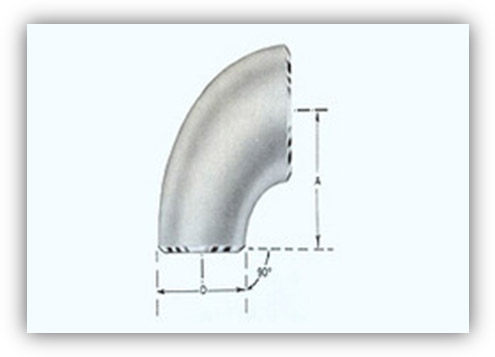

INCHES			METRIC
N.B.	O.D. At Bevel D	Centre to End A	N.B.	O.D. At Bevel D	Centre to End A
1	1.315	1	25	33.40	25.40
1 ¼	1.660	1 ¼	32	42.16	31.75
1 ½	1.450	1 ½	40	48.26	38.10
2	2.375	2	50	60.33	50.80
2 ½	2.875	2 ½	65	73.03	63.50
3	3.500	3	80	88.45	76.20
3 ½	4.000	3 ½	45	101.60	88.45
4	4.500	4	100	114.30	101.60
5	5.563	5	125	141.30	127.00
6	6.625	6	150	168.28	152.40
8	8.625	8	200	219.08	203.20
10	10.750	10	250	273.05	254.00
12	12.750	12	300	323.85	304.80
14	14.000	14	350	355.60	355.60
16	16.000	16	400	406.40	406.40
18	18.000	18	450	457.20	457.20
20	20.000	20	500	508.00	508.00
22	22.000	22	550	558.80	558.80
24	24.000	24	600	609.60	609.60
